Wiring Services
Custom harnesses built to race-spec standards, without compromise.

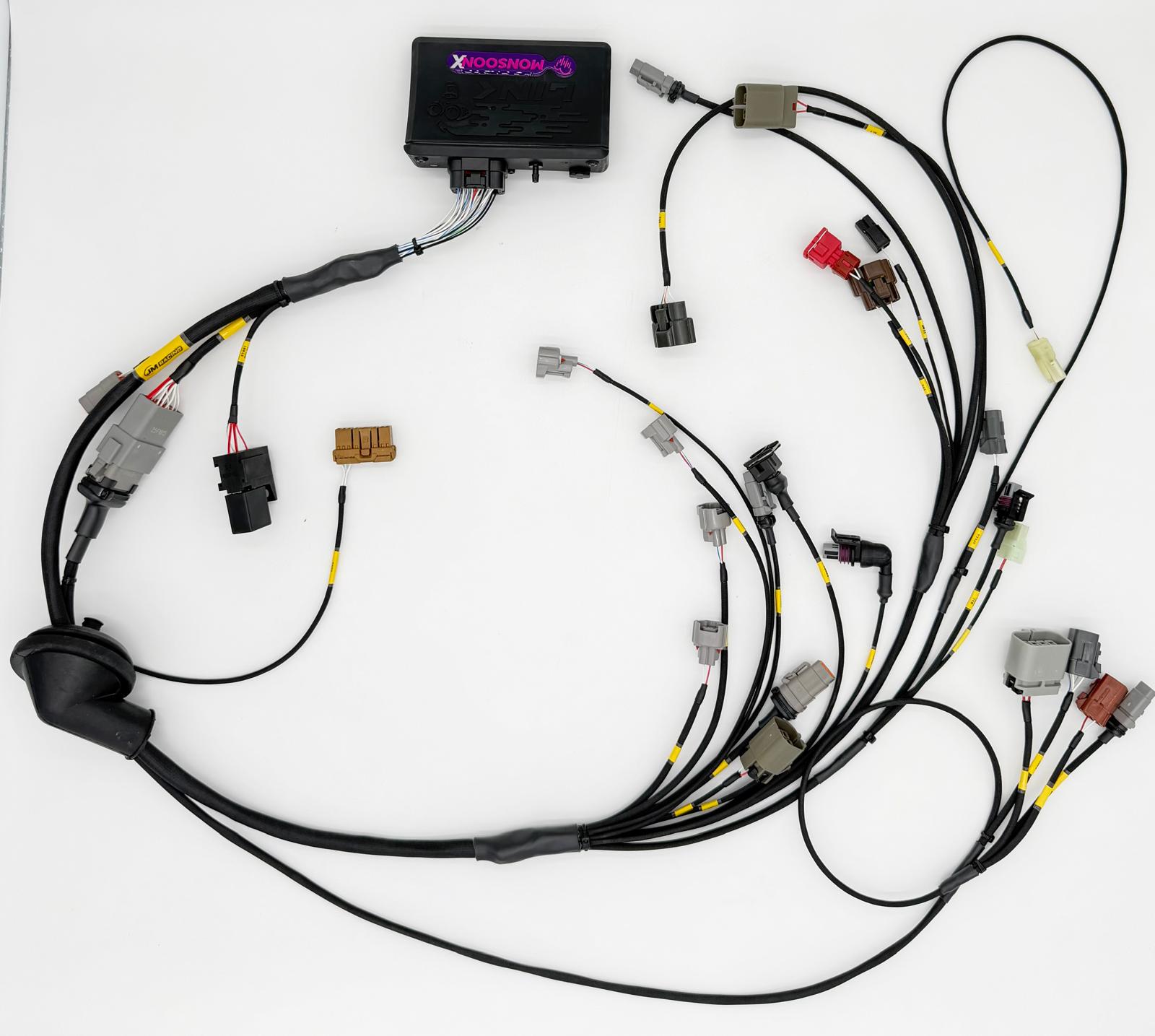

Street-Spec Harness
For the enthusiast who wants pro level performance without the pro level price tag. Blends premium features with cost-efficient materials to keep it budget friendly.
- •Aerospace Grade Tefzel or TXL Automotive Grade Wire
- •High Temp, Cut and Abrasion Resistant Fiberglass Looming
- •Raychem ATUM and SCL for Transitions and Booting

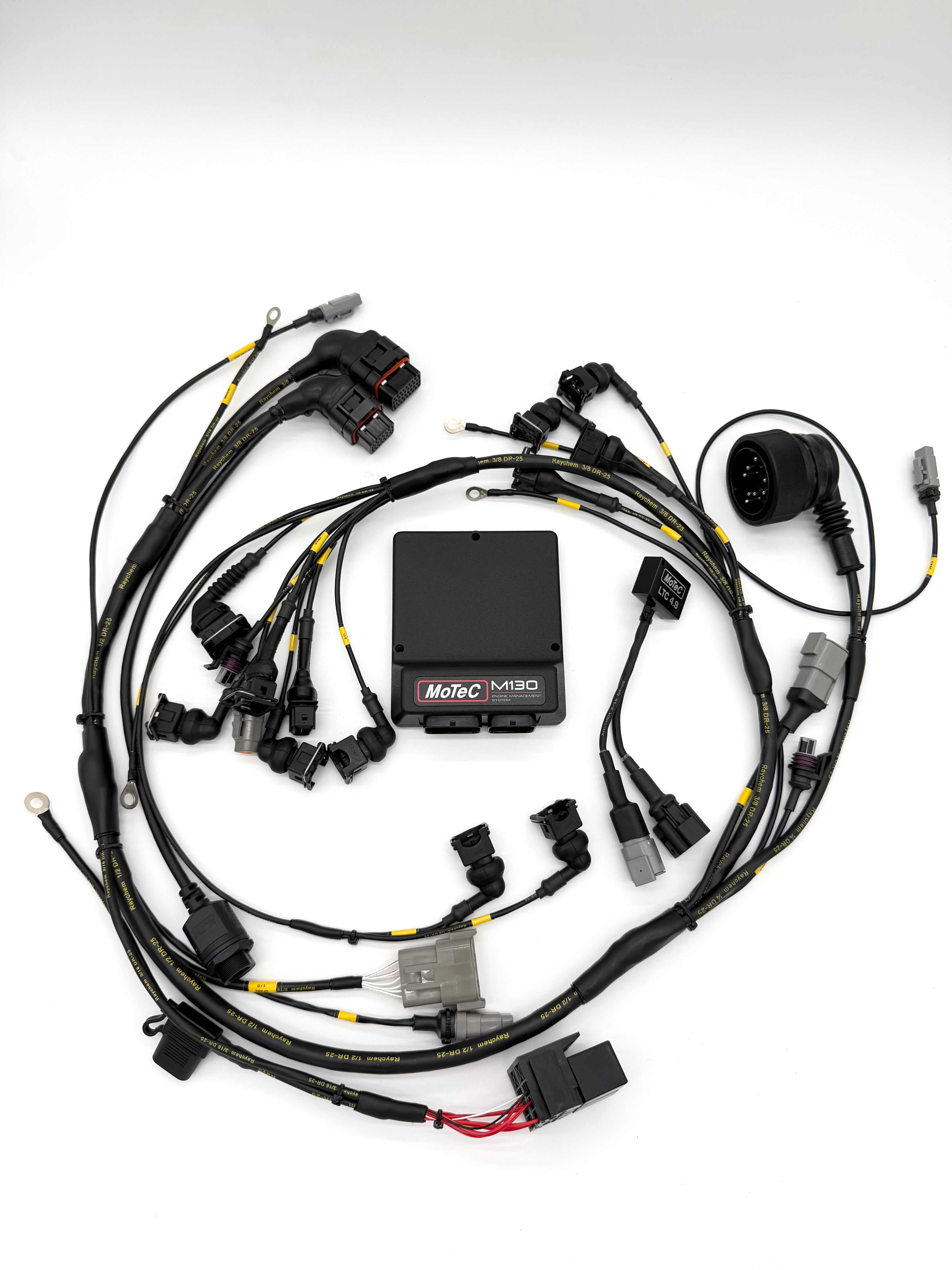

Motorsport-Spec Harness
Our highest-end wiring harness, precision built for championship level performance. The gold standard for drivers who want the best of the best.
- •Concentrically Twisted Aerospace Grade Tefzel Wire
- •Raychem DR25 Heat Shrink Looming
- •Epoxy Sealed Raychem Boots
- •Mil-Spec Bulkhead Connectors
Every Pin, Documented
Click a pin to see exactly what it does. This is the level of documentation that ships with every motorsport grade harness.
Half Bridge Output 2
| FUNCTION | Drive-By-Wire Negative |
| WIRE COLOR | 20AWG · White | Black Stripe |
Every pinout is documented and labeled at delivery. No guessing which wire does what.
Sensor 5.0V A
| FUNCTION | CAM/CRANK Trigger 5V Supply |
| WIRE COLOR | 22AWG · White | Orange Stripe |
Every pinout is documented and labeled at delivery. No guessing which wire does what.
Low Side Ignition 1
| FUNCTION | Cyl 1 Coilpack |
| WIRE COLOR | 22AWG · Violet |
Every pinout is documented and labeled at delivery. No guessing which wire does what.
Low Side Ignition 5
| FUNCTION | Cooling Fan Relay Trigger |
| WIRE COLOR | 22AWG · White | Grey Stripe |
Every pinout is documented and labeled at delivery. No guessing which wire does what.
Sensor 5.0V B
| FUNCTION | Sensor Circuits 5V Supply |
| WIRE COLOR | 22AWG · Orange |
Every pinout is documented and labeled at delivery. No guessing which wire does what.
Battery Negative
| FUNCTION | Ground · Cylinder Head |
| WIRE COLOR | 20AWG · Black |
Every pinout is documented and labeled at delivery. No guessing which wire does what.
Analogue Voltage Input 1
| FUNCTION | Manifold Pressure Sensor |
| WIRE COLOR | 22AWG · White |
Every pinout is documented and labeled at delivery. No guessing which wire does what.
Half Bridge Output 1
| FUNCTION | Drive-By-Wire Positive |
| WIRE COLOR | 20AWG · White | Purple Stripe |
Every pinout is documented and labeled at delivery. No guessing which wire does what.
Peak Hold Injector 1
| FUNCTION | Cylinder 1 Injector |
| WIRE COLOR | 22AWG · Blue |
Every pinout is documented and labeled at delivery. No guessing which wire does what.
Battery Positive
| FUNCTION | Battery +12V |
| WIRE COLOR | 20AWG · Red |
Every pinout is documented and labeled at delivery. No guessing which wire does what.
Just As Critical As The Engine Loom

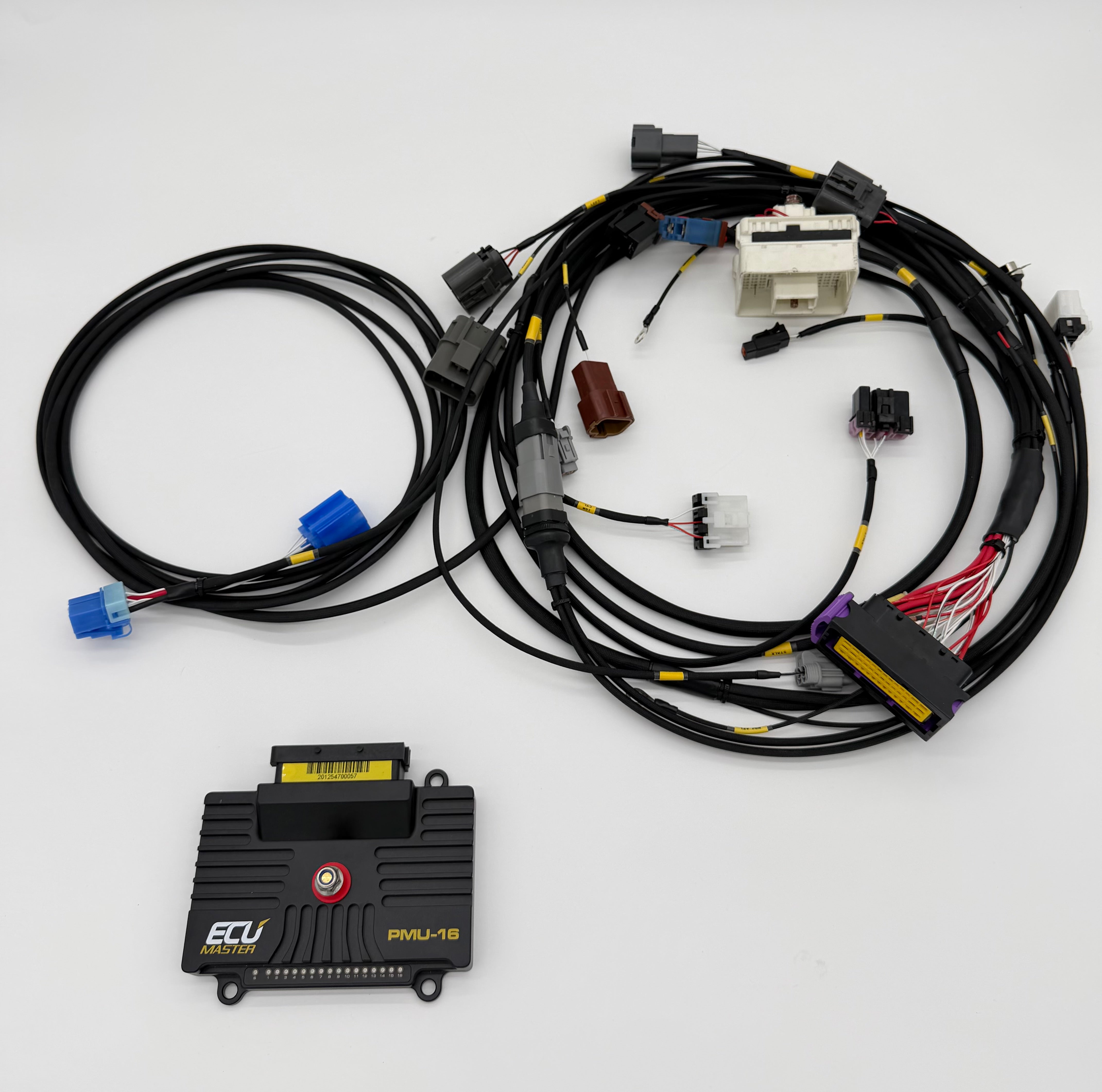

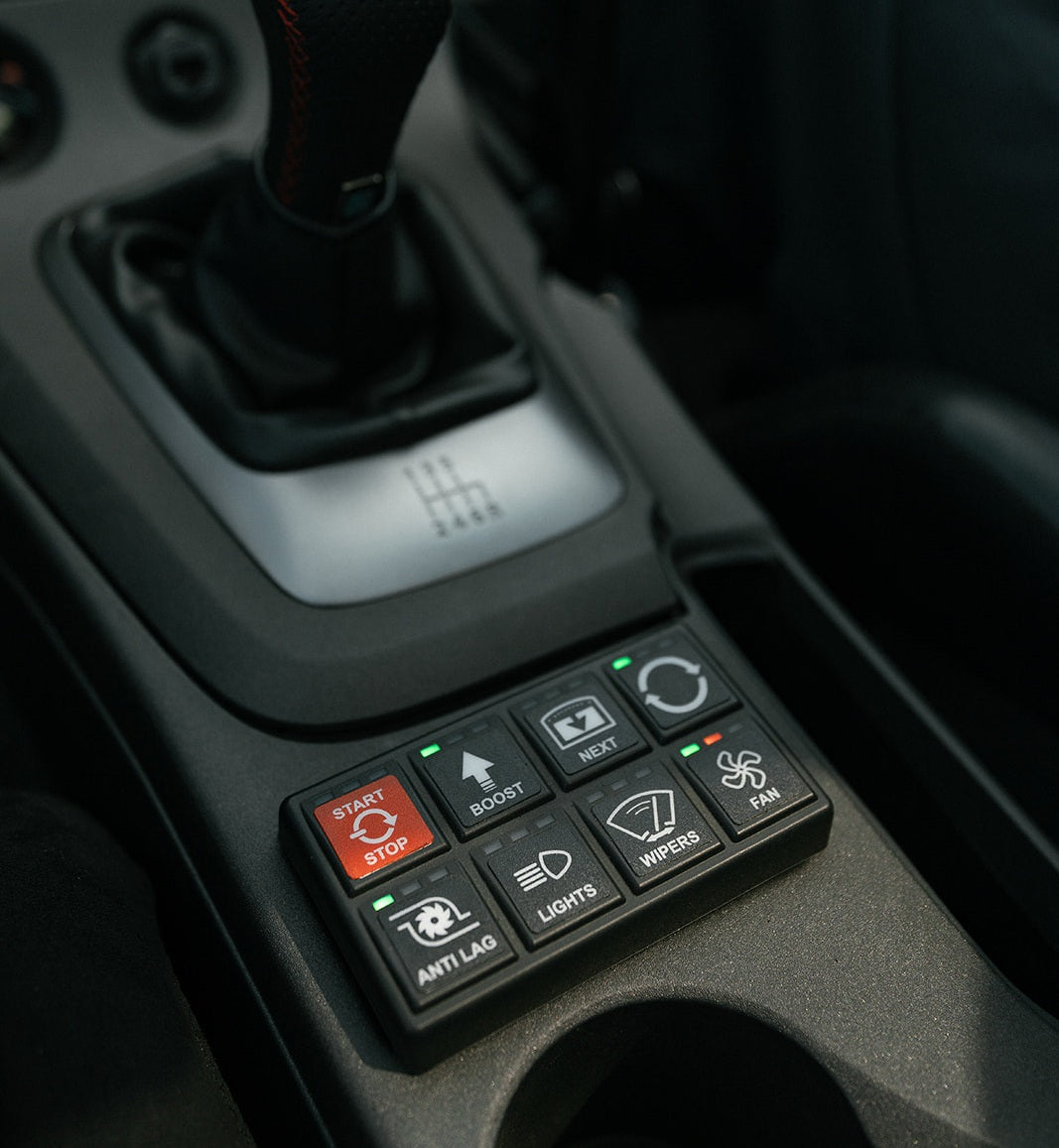

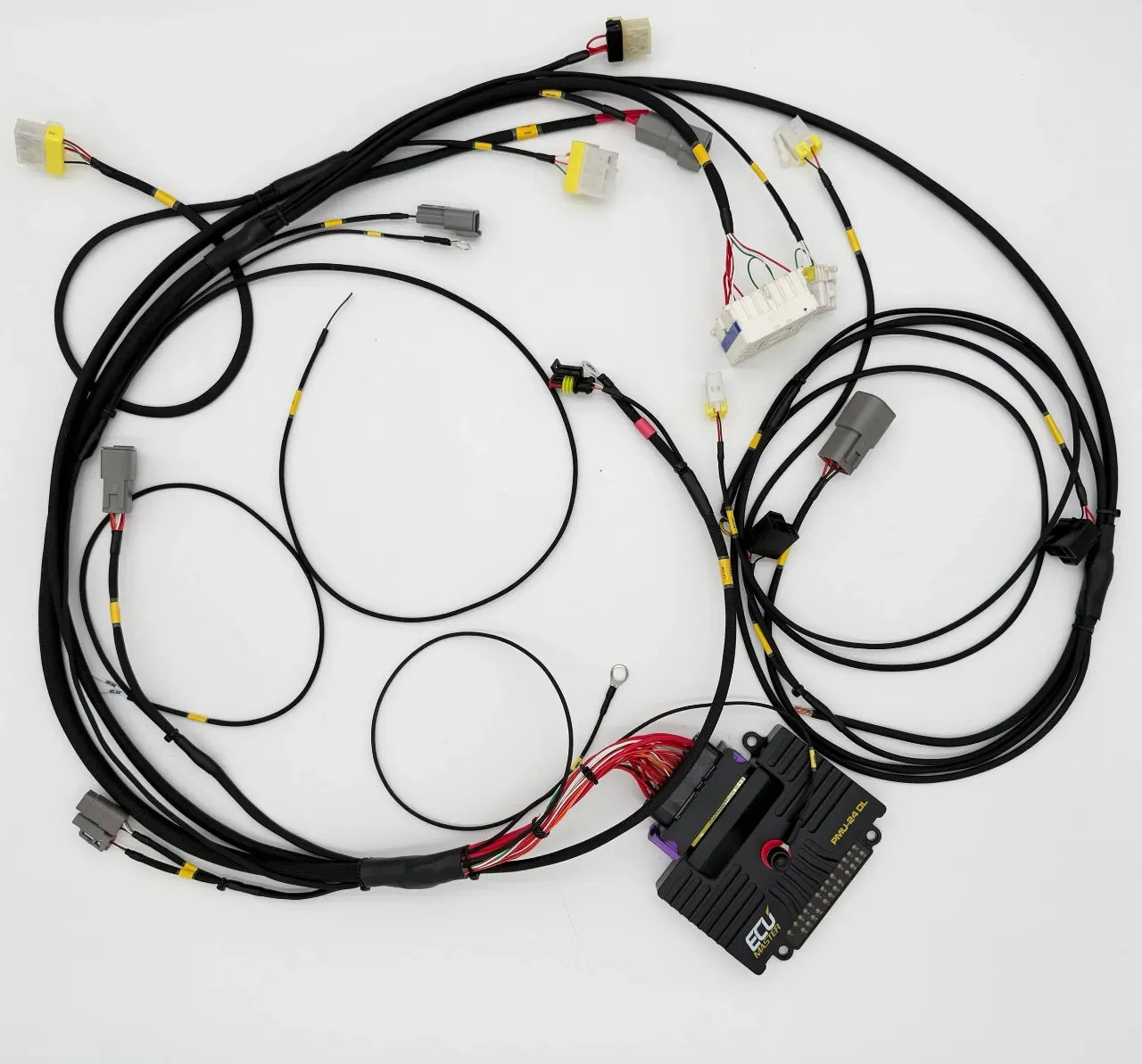

Half of what we build never touches an engine bay. The chassis wiring is responsible for powering mission-critical devices like Fuel Pumps, Fans, and more. We design ours to delete factory clutter, integrate stock functions, add CAN keypads and digital dashes cleanly, and put every circuit exactly where your build needs it.

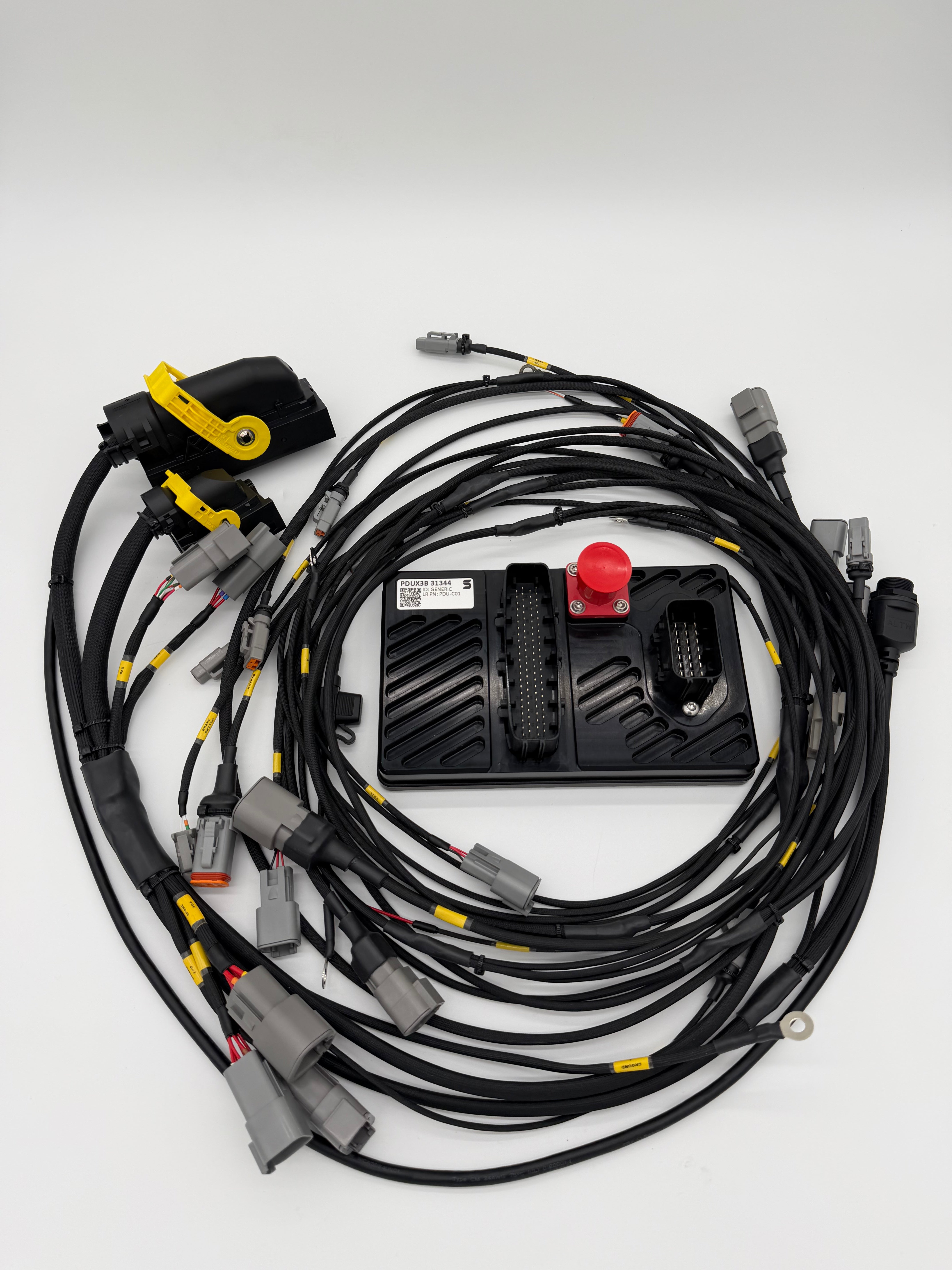

- PDM & keypad integration - No fuses or relays to leave you stranded
- Standalone digital display & CAN integration for factory clusters
- Every circuit labeled, documented, and datalogged
Have an idea for a project you want to bring to life?

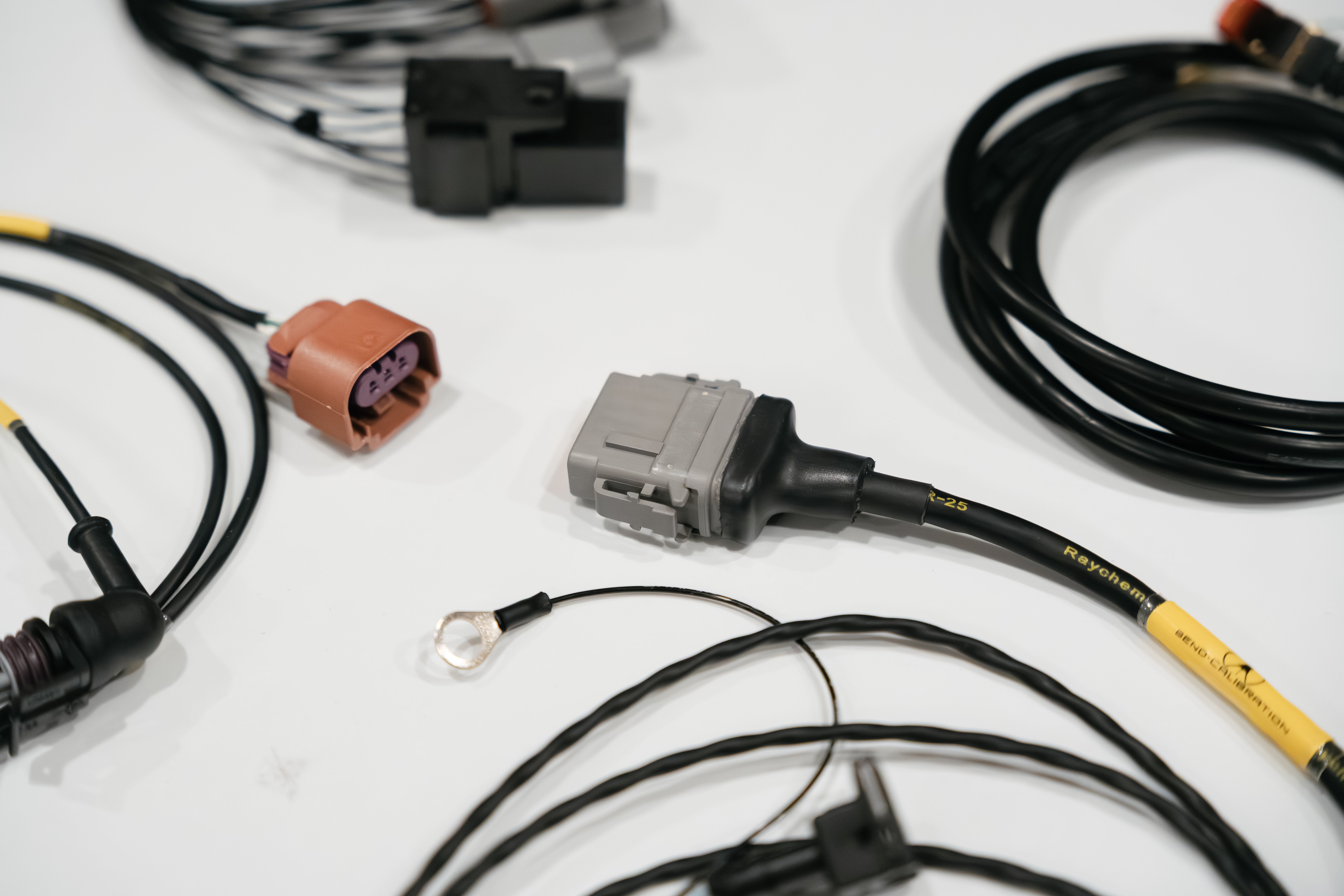

We can help. From dash keypads to full patch harnesses, we build custom electrical solutions tailored to your build.
Ready to Begin?
